Manufacturer & Installer of Aluminium
Windows & Doors to the Commercial Sector

UEA Two (1).jpg

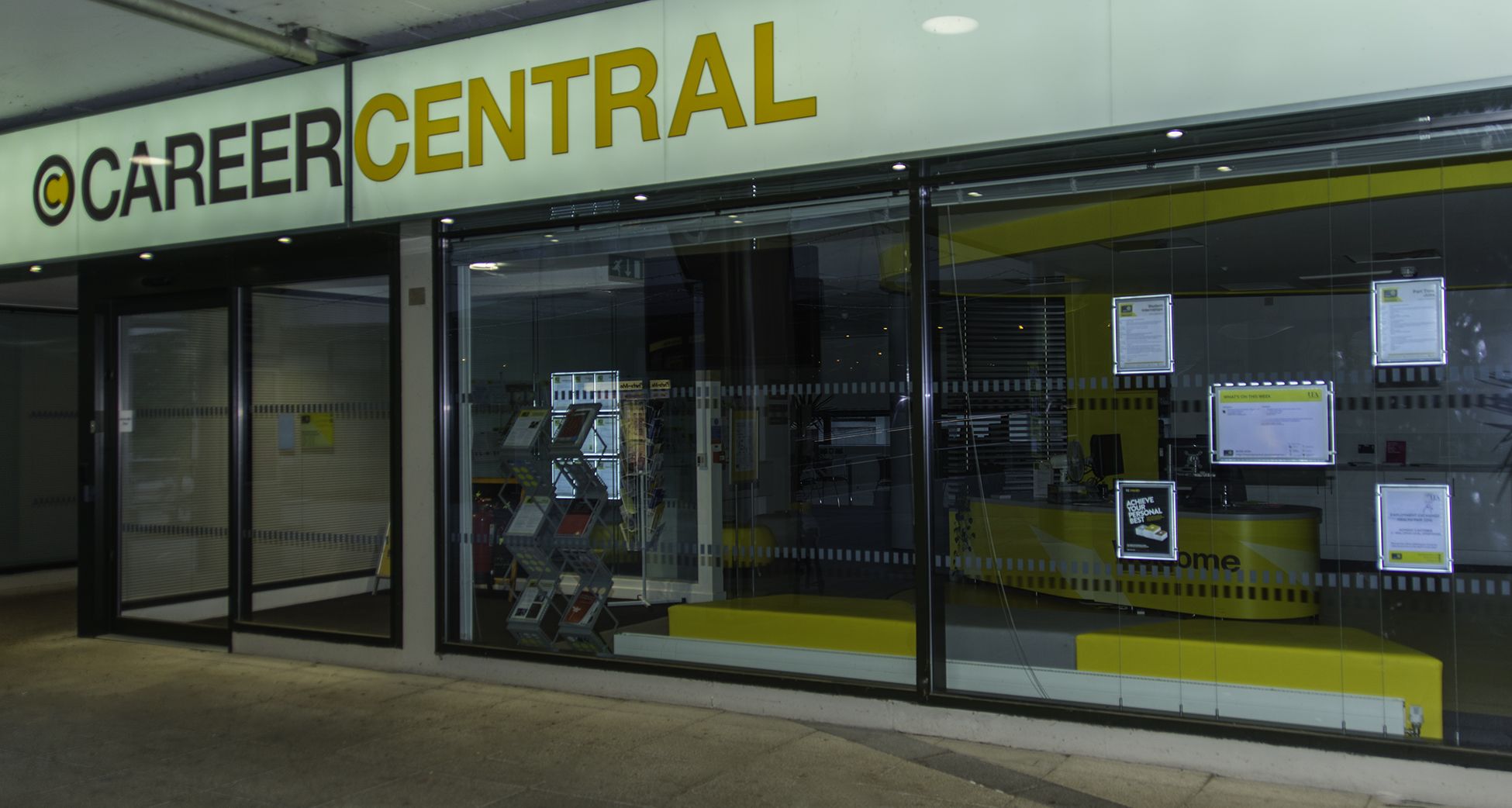

Sliding Doors installed at the UEA by Aluwin

Aluminium Commercial Shop front system with large glazed panels with an anti-finger trap door system within the UEA Campus. This is one of our most popular commecial products and we have installed a large number across East Anglia, London and the South East.

ABOUT OUR GROUND FLOOR TREATMENTS

Aluwin offers a complete ground floor treatment solution for hospitality, education, retail and residential sectors where low rise framing is required. Through the option of thermally broken screening our AluK system provides a high performance solution that is versatile and adaptable, providing designers with the look and performance they require. The system is available insulated or non-insulation for display windows in applications such as shopping centres.

PRODUCT DESCRIPTION

A versatile and flexible solution for a range of applications including shop fronts, entrances and ground floor framing the GT55 TB aluminium ground floor treatment system has been designed to offer high levels of performance through thermally broken screening. The system also includes an integrated range of high-traffic, anti-finger trap doors suitable for single storey applications.

Providing high levels of thermal performance, the GT55 TB aluminium ground floor treatment system has been designed in a ladder frame construction to provide a flexible solution for low rise glazing applications and can be integrated with other AluK systems. Sealed units of 6mm up to 32mm can be accommodated to improve thermal and acoustic performance.



BENEFITS

A versatile and flexible solution for a range of applications including shop fronts, entrances and ground floor framing the GT55 TB aluminium ground floor treatment system has been designed to offer high levels of performance through thermally broken screening. The system also includes an integrated range of high-traffic, anti-finger trap doors suitable for single storey applications.

DESIGN FEATURES

  • Pocket or bead glazed for ease of site glazing
  • 110mm frame depth to accommodate varying types of applications
  • Slim 55mm profile width for increased glazing and light transmission
  • Ladder frame construction to enable fast on-site installation
  • Fully compatible with other AluK systems



OPTIONS

  • Can accommodate 6mm - 32mm sealed units for thermal and acoustic performance
  • Wide range of hardware available offering full customisation
  • Available in single or dual colour option, polyester powder coating and anodised finishes

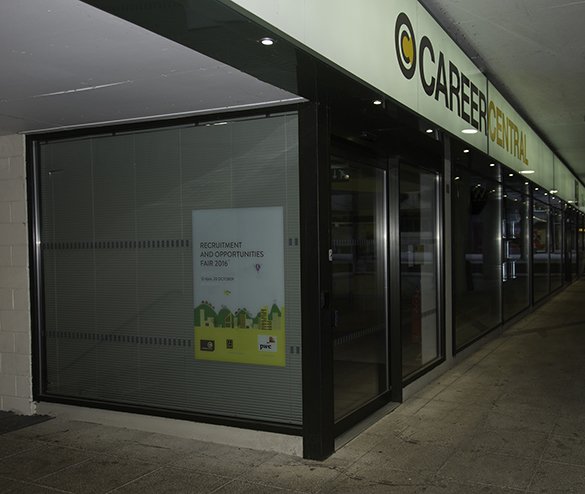

UEA.jpgUEA Shopfront, Sainsbury Centre, Norwich

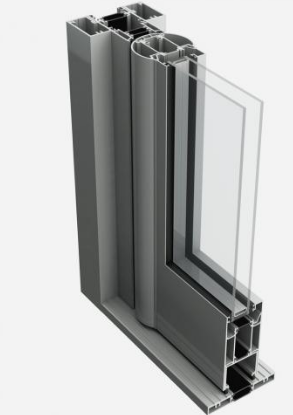

GF55 TB GFT.PNGGT55 Profile



GT55 TB GFT

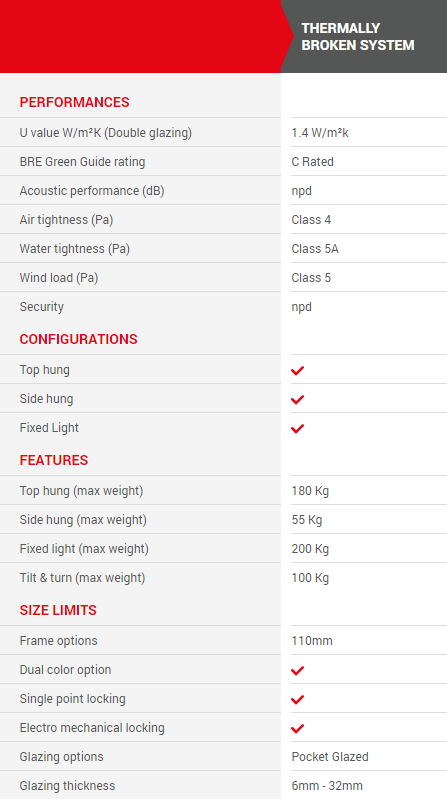

Capture.PNGBenefits

If you would like more information, please contact us below.

Contact Us
